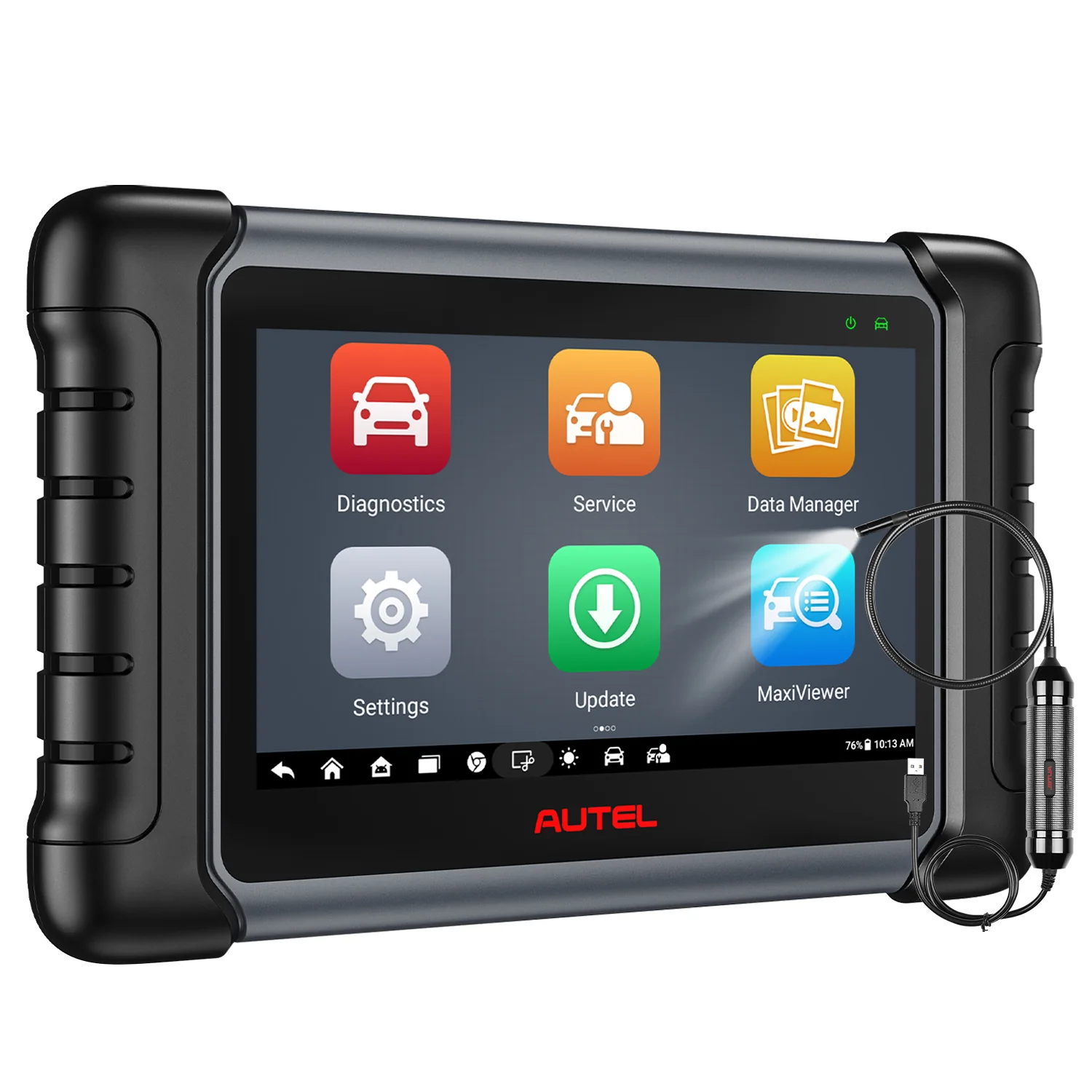

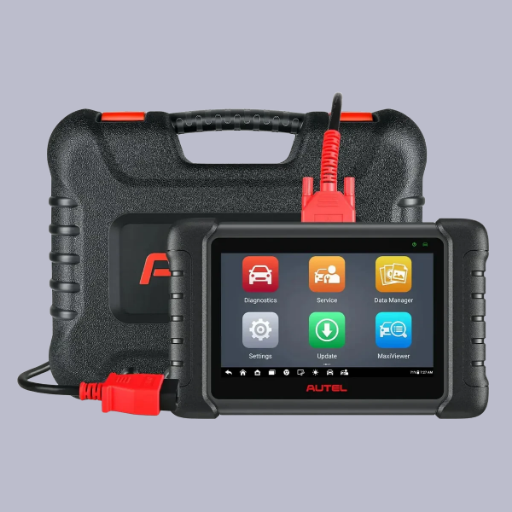

Original Autel MaxiCOM MK808S OBD2 Automotive Scanner | OE All Systems Diagnostic Tool | Bi-directional Control 28+ Service | OBD Code Reader

This newly released Autel MaxiCOM MK808S is the next generation of MK808 scanner. MK808S automotive scan tool makes greater improvements in hardware configuration and new features than MK808 but has the same cost, which makes it a cost-effective tool for home repair & busy workshops

MK808S Updated Hardware Configuration, Improved Diagnostic Speed

Upgrade Android 4.4.4 version to Android 11.0 OS: Enhancing 5x Faster diagnostic speed than eve Maximize 1+64GB to 4+64GB Memory: Expanded memory effectively avoids lag and delay when processing multitasking.

Renewed CPU from ROCKCHIP RK3188 to RK3566: Optimizing the diagnostic Apps operation and bringing fast AI computing power.

Dual WiFi (2.4 & 5.0GHz): Accelerating the rate of diagnostic data transmission and collection.

7” Touchscreen with 1024*600 Resolution: Portable size for intuitive and comfortable experience.

Autel MaxiCOM MK808S OBD2 Scanner, Upgrade of MK808, Bi-directional Scan Tool with 36 Service Functions, All System Diagnostics, 99% of Vehicle Coverage+FCA Vehicle Access, No IP Limitation

Upgraded of MK808, Autel MK808S with Level-up Hardware

Newly released Autel MK808S upgraded from MK808 OBD2 scanner and covers all the gorgeous features: 28+ Service Functions, Bidirectional Control,OE-level All System Diagnostics, and 150+ Vehicle Support, which gets all-new smooth experience. As the new generation, Autel scanner MK808S comes with powerful hardware Android 11.0 Os, 4+64GB Memory, Dual WiFi Transmission to run rocket-like diagnostic speed.

 Bi-Directional Control (Active Test)

You can figure out whether a specific subsystem or component in your car functions well or not by using this tool to make the tester outputs function instead of checking in ignition status.

Click the "Update" icon to upgrade the MK808 system version to V2.62 or above to get all new features.

Autel MaxiCOM MK808S is the most cost-worthy Autel scanner up to date, integrates Bi-directional Control, Initial Adaptation, Self-learning or some Auto Detection function, 28+ Services, All system Diagnostics, Digital Inspection, FCA Auto Auth, IMMO Functions, Battery Registration and Reset and etc. Along with intuitive user interface & ultra-portability, MK808S is the perfect companion for DIYers & reparir workshop.

More Advanced Hardware

Except its widely-used software, the advanced hardware also brings glory to its smooth and fast operation.

Android 11 - based tablet diagnostic tool greatly improves the working efficiency with performance and power optimized multi-core processor.

7 inch touchable LCD screen does a great job in the better user experience; you can directly get what you need with intuitive navigation.

4G RAM 64G ROM memory is not only an extended storage space but a way to reduce the possible condition of slow response.

Bi-Directional Control (Active Test)

You can figure out whether a specific subsystem or component in your car functions well or not by using this tool to make the tester outputs function instead of checking in ignition status.
More Language optional

English, German, Spanish,Japanese,Portuguese, Dutch, French, Italian. Korean, Russian, Polish, Swedish, Persian, Turkish, Thai, Vietnamese, Hebrew, Arabic, Indonesian

After you get the product, please tell us your SN of machine to activate the language you need .
The SN can be located on the back of the device’s body or in the following menu path “Maxisys-> Settings -> About Us”

36 Kinds of Special Reset Service Functions

1. Oil Reset Service
Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;

2. Electronic Parking Brake (EPB) Service
Maintains the electronic braking system safely and effectively through deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

3. Steering Angle Sensor (SAS) Service
Performs calibration for the Steering Angle Sensor (SAS), which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.

4. Tire Pressure Monitor System (TPMS) Service
The TPMS service function include displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors

5. DPF Service
carry out numerous functions to the Diesel Particulate Filter system. The tool will manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

6. BMS Reset
Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information and prevent the related control module from detecting false information.

7. IMMO Service
enables you to disable the lost vehicle keys and program a replacement key fob.

8. ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion.

9. Throttle Matching
to initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately

10. Injector Coding
to make the cylinder better identify injector after ECU or injector is replaced.

11. Suspension
12. Seats
13. Lang Change
14. Trans adaption
15. TEC learn
16. Headlamp
17. CHG Tire Size
18. WIN DR ROOF....

All Systems Diagnoses

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.

2 options available when accessing the Diagnosis section

1. Auto Scan –The Auto Scan function performs a comprehensive scanning of the ECUs in the vehicle’s system to locate and retrieve DTCs.
2. Control Units – displays a selection menu of all available control units of the test vehicle.

FCA Auto Auth

With the newest update on Autel scan tool MK808S, you now have access to the security gateway module on 2017 and newer Fiat Chrysler vehicles, so that the diagnostic tool can clear codes, run bi-directional active tests, actuations, relearns or even IMMO key programming (pulls PIN & write), ADAS calibration assistance etc.

Support MV105/MV108 Inspection Camera

Autel 105 108 MaxiVideo Inspection Video Scope is compatible with MK808S, maximizing the potential of MK808S to examine and clean difficult-to-reach car areas, such as spark plug holes, engine cylinders, and other small parts, quickly and safely.
Note: MV105/MV108 need to buy separately.

4 methods for Vehicle Identification

1. Auto VIN Scan
The MaxiCOM diagnostic system features the latest VIN-Based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles.

2. Manual VIN Input
For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.

3. Automatic Selection
The Auto VIN Scan can be selected after selecting the test vehicle manufacturer.

4. Manual Selection
When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, the vehicle can be manually selected.


ECU Information

ECU Information – retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications.

Read Codes

Read Codes – displays detailed information of DTC records retrieved from the test vehicle’s ECU. On some vehicles, freeze frame data can also be retrieved for viewing.

Erase Codes

Erase Codes – erases DTC records and other data from the test vehicle’s ECU.

Live Data

Live Data – retrieves and displays live data and parameters from the test vehicle’s ECU.Display live data in text, graph & analog for easy data review.

Complete OBD2 functions

Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.


MK808S Widely Coverage

For most vehicles manufactured after 1996, the scanner delivers all the basic OBD2 functions advertised, and clears tricky manufacturer trouble codes. Also, you can use the scan tool on 56 brands of US, EU and Asian-made car models with OBD2 systems, to run advanced professional functions:

- Europe:
for Benz, for Sprinter, for BMW, for Fiat, for LandRover, for Maserati, for Opel, for Peugeot, for Porsche, for Lancia, for LT3, for Maybach, for Mini, for Seat, for Skoda, for Vauxhall, for Volkswagen CV, for Renault, for Saab, for Smart, for Volvo, for Volkswagen, for Abarth, for Alfa, for Audi, for Bentley, for Bugatti, for Citroen, for Dacia, for Ford, for Jaguar, for Lambor Ghini

- Asia:
for Acura, for Daewoo, for Daihatsu, for Honda, for Hyundai, for Infiniti, for Isuzu, for Kia, for Lexus, for Maruti Suzuki, for Mazda, for Mitsubishi, for Nissan, for SsangYong, for Subaru, for Suzuki, for Toyota, for GTR, for Scion

- America:
for Chrysler, for Ford, for GM, for Dodge, for Jeep


Specifications

• CPU: Rockchip RK3566

• RAM:4G

• ROM:64G

• Battery Capacity:5000mAh

• Android Version:Android 11

• Screen Size:7inch

• Wifi:2.4 & 5 GHz

• VCI:main cable


Warranty & Update

One Year Warranty for Any Quality Problems
Lifetime Free Tech Support

One Year Free Update.The update fee is usd125 per year.
Lifetime free use.

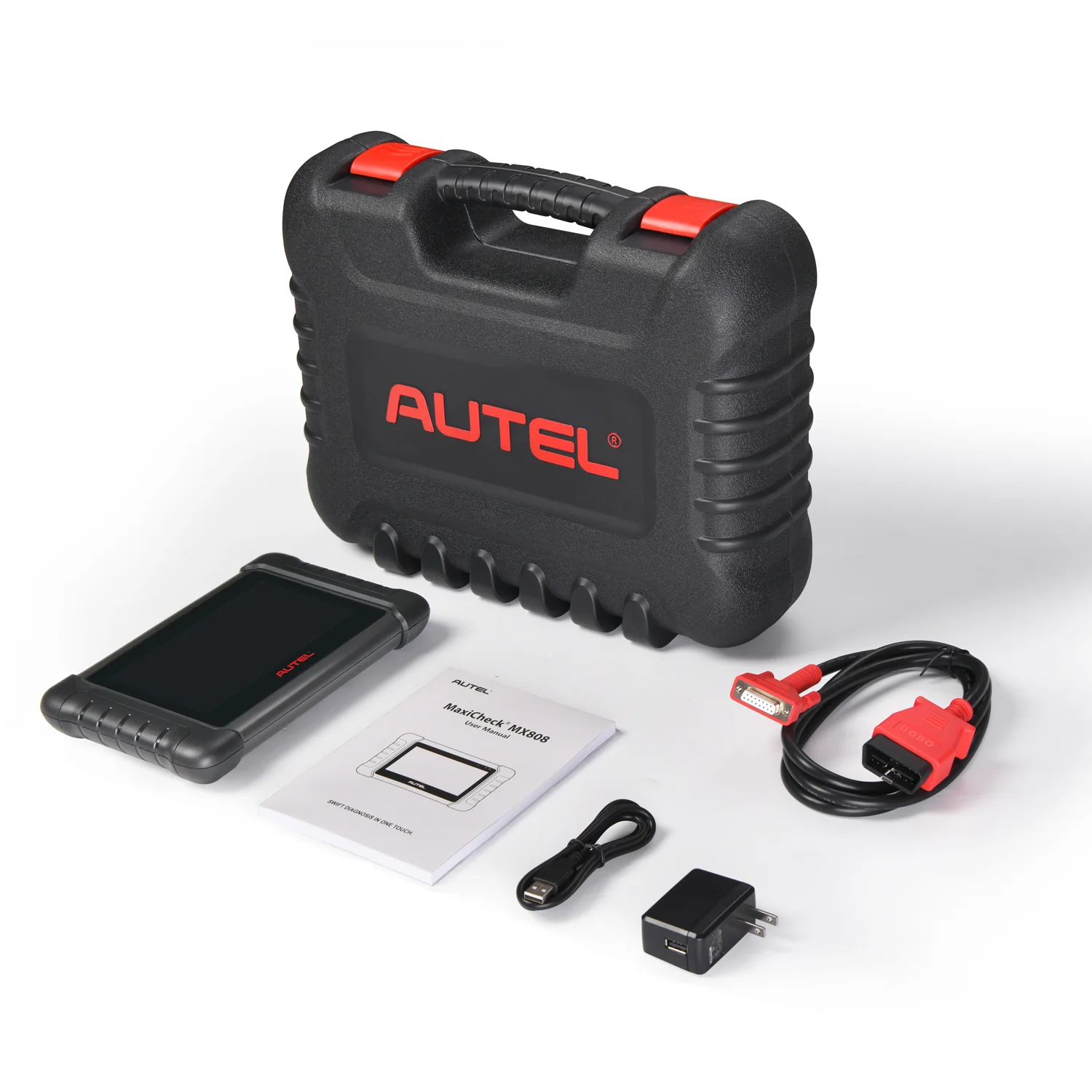

Package Includes:

1.  1 × Autel MaxiCOM MK808S Diagnostic Tablet

2. 1 × Main OBDII Cable

3. 1 × Mini USB Cable

4. 1 × USB External Power Adapter

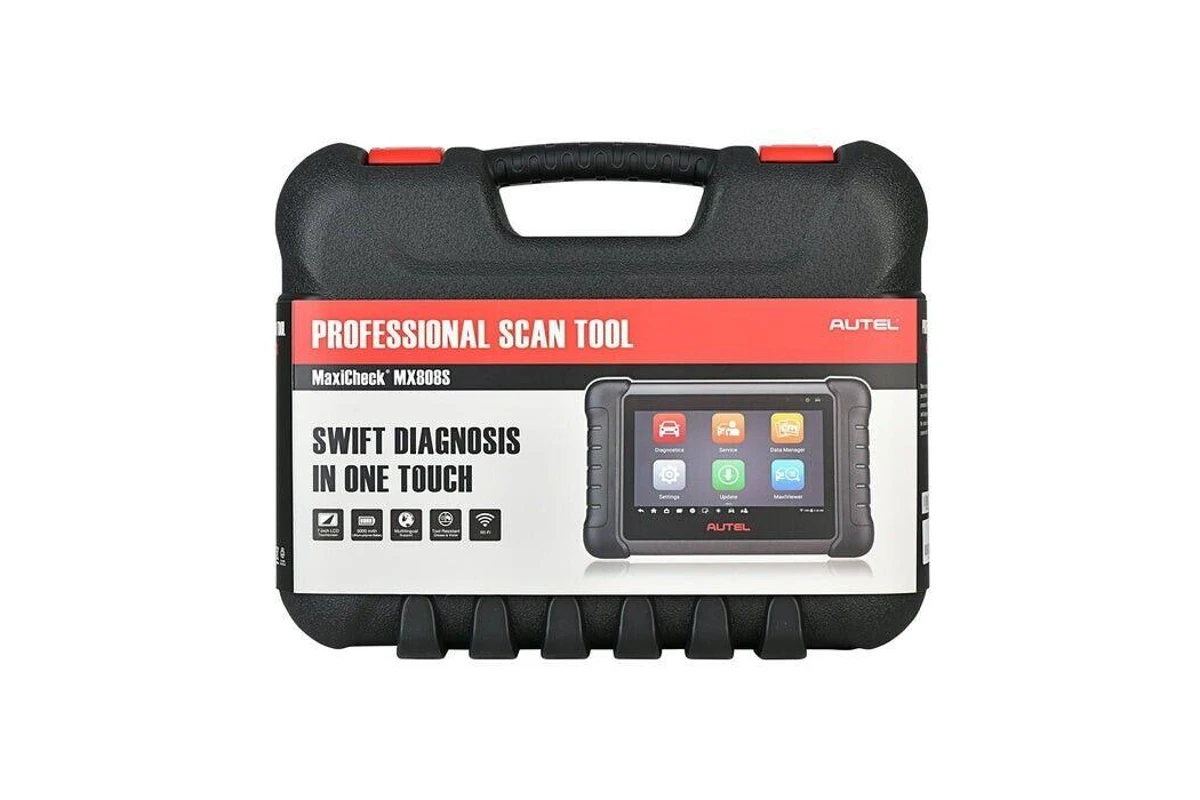

5. 1 × Carrying Case

6. 1 × Quick Reference Guide

7. 1 × User Manual
